Airport Operations
Everything at an airport is color-coded, and the code is the exam: white runway markings against yellow taxiway lines, red mandatory signs against yellow location signs, blue taxiway lights against white runway edges, and a beacon whose color pair tells you what kind of field you’re near. Drone pilots rarely use runways — but you operate beside them, under their traffic patterns, and occasionally inside their security perimeters, so the ACS makes airport literacy a tested Area V skill.
Types of Airports
Towered (Controlled)
- An operating ATC tower; blue on sectional charts
- Pilots must communicate with ATC; drone operations need §107.41 authorization
Non-Towered (Uncontrolled)
- No tower; magenta on sectionals
- Pilots self-announce on CTAF; drones may still need authorization depending on underlying airspace
The chart color tells you about the tower, not the airspace. A magenta airport can sit inside a Class E surface area that requires authorization just the same.
Runway Numbering
Runway numbers are magnetic heading ÷ 10, rounded (AIM ¶2-3-3):
- Runway 9 ≈ 090° magnetic (east); Runway 27 ≈ 270° (west)
- 9 and 27 are the same pavement from opposite ends
- Parallel runways take L/C/R suffixes
Final approach to Runway 9 = heading east. The exam’s trick version gives you one runway number and asks the magnetic heading of the opposite end — it’s your number ± 18.

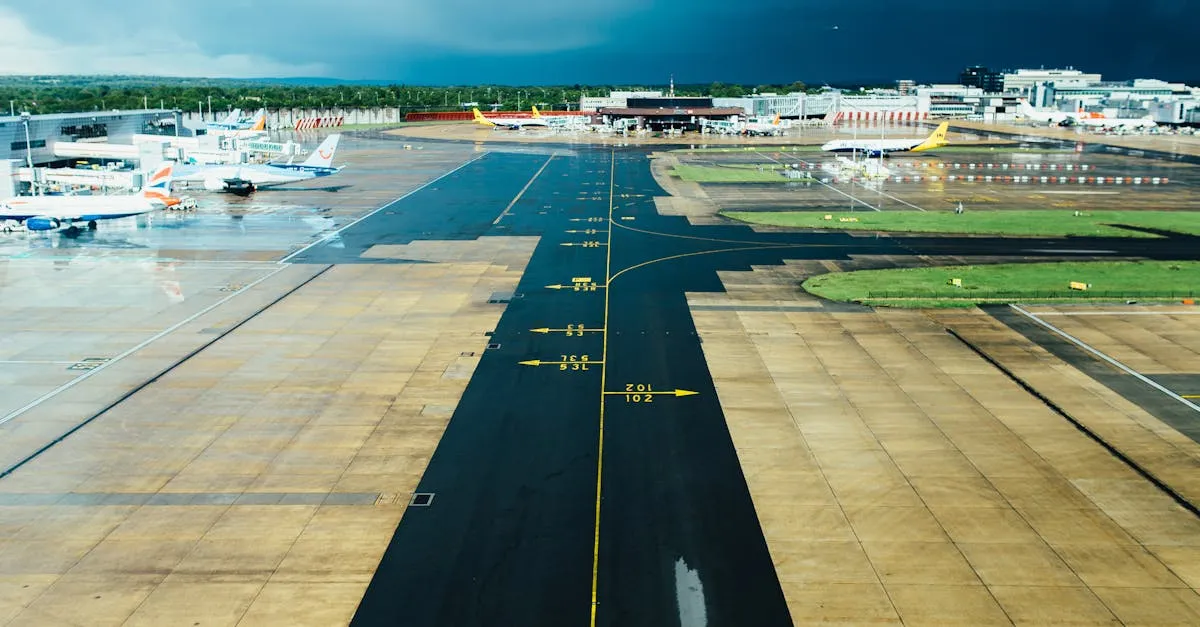

Runway Markings
Basic Markings (Non-Towered Fields)
- Runway designation numbers at each end
- Centerline: dashed white line
- Threshold markings: stripes at the runway ends
Precision Instrument Markings
All of the above, plus:
- Touchdown zone markers: paired stripes at set intervals
- Aiming point markers: broad blocks near each touchdown zone
- Taxiway markings: yellow — runway markings are always white
Airport Signs and Lighting
Signs
- Runway holding position sign: red panel with white text (“9-27”) — a mandatory hold point; do not cross without clearance
- Taxiway direction sign: yellow panel with black text and arrow
- Location sign: black panel with yellow text and yellow border — “you are here”
Red-with-white = mandatory instruction. Yellow-with-black = location/direction. The exam swaps the color schemes in the wrong answers.
Lighting
- Runway edge lights: white (amber near the last 2,000 ft of the approach end on precision runways)
- Taxiway edge lights / centerline: blue edges, green centerline
- Approach lighting systems: configurations sequenced to the threshold at instrument-equipped fields
The Airport Beacon (AIM ¶2-1-9)
| Beacon colors | Marks |
|---|---|
| White and green | Lighted land airport |
| White and yellow | Lighted water airport |
| Green, yellow, and white | Lighted heliport |
Military beacons flash white-green with a dual-peaked (double-flash) white. And a fact the exam likes: in Class B/C/D and E surface areas, a beacon running during daylight hours often means visibility below 3 miles and/or ceiling below 1,000 feet — weather worth noting before you even pull the drone out.

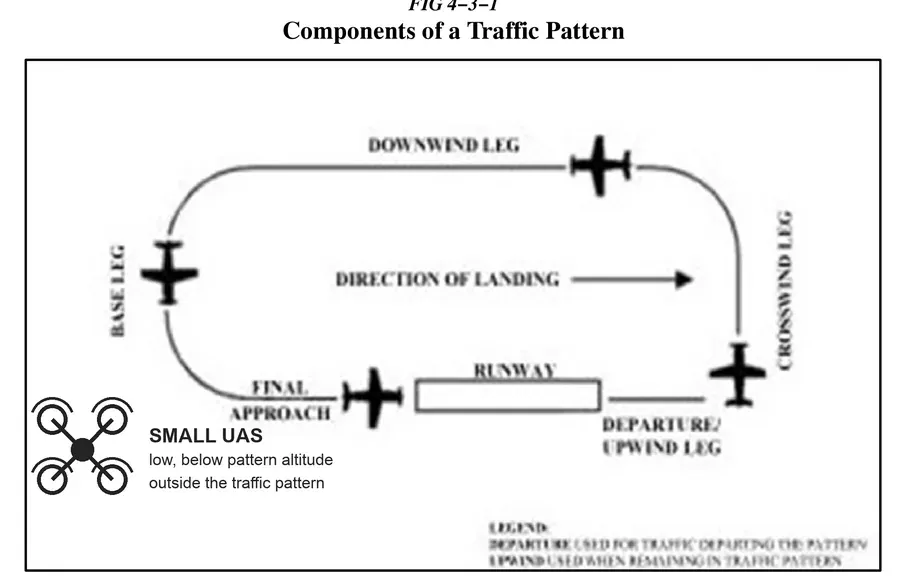

Traffic Patterns
Manned aircraft fly standardized patterns around runways (AIM ¶4-3-3):
- Upwind leg: parallel to the runway, climbing after departure
- Crosswind leg: perpendicular, after leaving the departure end
- Downwind leg: parallel and opposite to landing direction, typically at 1,000 ft AGL
- Base leg: perpendicular, turning toward final
- Final approach: aligned with the runway, descending
Stay below pattern altitude and clear of the approach/departure paths near any airport. A drone at 380 ft under a 1,000-ft pattern is legal and unremarkable to manned pilots; the same drone drifting into the final approach course at 400 ft is a midair waiting for a date.
Drone Positioning Near a Pattern
Three positioning rules keep you out of the pattern’s conflicts:
- Operate on the opposite side of the runway from the pattern legs when the site allows — the traffic lives on the left side (standard patterns are left-hand unless the Chart Supplement says right), so the right side of the extended centerline is the quiet half
- Stay outside the extended centerlines — the final approach path and the departure corridor are the two places aircraft are guaranteed to be, descending or climbing through exactly the altitudes drones like
- Listen while you work: a scanner on CTAF tells you which runway is active and how far out traffic is — pattern turns are announced (“midfield left downwind two-six”), and those calls are your early-warning grid
The pattern from the drone’s side of the fence: below 1,000 ft, outside the centerlines, opposite the pattern legs.

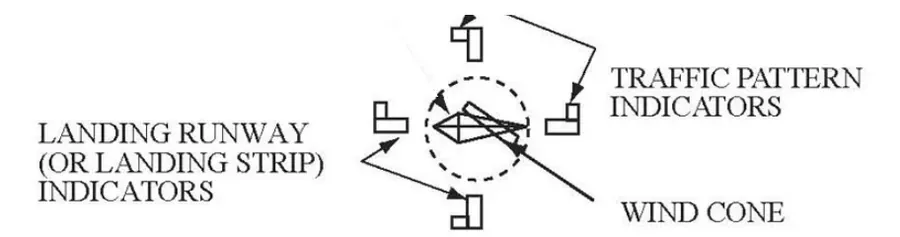

The Segmented Circle (AIM ¶4-5-2)
At non-towered fields, the segmented circle is the ground-side pattern briefing system — a circular marker, centered on:
- A wind cone/sock (or wind tee): the large end points into the wind
- A tetrahedron: the small end points in the landing direction — and the AIM cautions pilots against using it for wind direction or calm-wind runway selection
For drone pilots: the wind sock beside a segmented circle is the best free, real-time wind reading at any small airport — more local than the METAR, updated every second.
Wind sock large end into the wind; tetrahedron small end toward landing. Two questions, two answers, one glance.
Security Areas: SIDA (V.B.K5)
A Security Identification Display Area is the portion of a commercial-service airport — under 49 CFR part 1542 — where access requires a security badge and escort for visitors: ramps, baggage areas, air operations areas. If your drone job touches an airport property (airline contract work, ramp inspections), you’re entering a SIDA, which means badging, escort procedures, and zero unescorted wandering. Operating a drone near or inside a SIDA without coordination isn’t just an FAA issue — it’s a security violation with its own enforcement track.
Wildlife Hazards (V.B.K7)
Airports attract birds — open ground, short grass, standing water — and manage them intensively (the FAA’s wildlife hazard program, AC 150/5200-32). Birds and drones collide on surprisingly even terms: a gull through a prop is a crash. Around airports, expect concentrated bird activity at dawn and dusk, near ponds and short-grass areas, and during migration seasons — and remember the manned traffic you’re avoiding shares the same birds at higher closure rates.
Wake Turbulence (AIM ¶7-3)
Behind every large aircraft trails a pair of counter-rotating vortices off the wingtips — invisible, sinking, drifting with the wind, and violent enough to flip a small aircraft. The drone-relevant facts:
- Vortices sink and drift; they linger for minutes after the generating aircraft has gone
- The hazard zones are behind and below departing/arriving heavy aircraft — exactly where a low drone near a runway would sit
- Helicopters produce their own downwash/outwash that can toss a small UAS at surprising distances
Practical rule: near runways serving anything bigger than light twins, wait out arrivals and departures before crossing the extended runway paths — a minute of patience beats a drone in a vortex.
The Chart Supplement (V.B.K6b)
The Chart Supplement holds the detail the chart can’t: field elevation, runway dimensions and surfaces, traffic pattern altitude and direction (which runways are right traffic), all frequencies (CTAF, tower, ground, ATIS/ASOS), fuel and services, operating hours, and the remarks that change missions (part-time towers, noise procedures, “UAS ops” notes).
Which source answers which question: sectional = airspace and symbols; Chart Supplement = procedures, hours, pattern direction; NOTAMs = what changed today. The exam sends you to the right book by the question’s noun.
Key Facts to Walk In With
ACS references: V.B.K1–K8
- Runway number = magnetic azimuth ÷ 10; opposite end ± 18
- Runway markings white, taxiway yellow; red signs mandatory; taxiway edge lights blue
- Beacon: W/G land, W/Y water, G/Y/W heliport; daytime beacon = likely IFR weather
- Pattern legs and typical 1,000-ft AGL downwind; stay below and clear
- Segmented circle: wind sock large end into wind; tetrahedron small end = landing direction
- SIDA: badged/escorted security areas (49 CFR 1542)
- Wake: behind-and-below heavy aircraft; vortices sink and linger
Quick Check
Q: Runway 18 points in which direction? A: South — approximately 180° magnetic.
Q: What color are taxiway edge lights? A: Blue.
Q: What does a red sign with white text indicate? A: A mandatory instruction — typically a runway holding position; do not proceed without clearance.
Q: The beacon at a Class D airport is on at 2 PM, clear day. What might that mean? A: Below 3 miles visibility and/or ceiling under 1,000 feet — check the weather before flying.
Q: Which part of a tetrahedron points the landing direction? A: The small end — and it indicates landing direction only, never wind.
Q: Where’s the worst place for a drone when a bizjet departs? A: Behind and below its flight path — in the sinking, drifting wingtip vortices.
What’s Next?
Now let’s learn about radio communications: frequencies, the phonetic alphabet, and how to communicate near airports.
