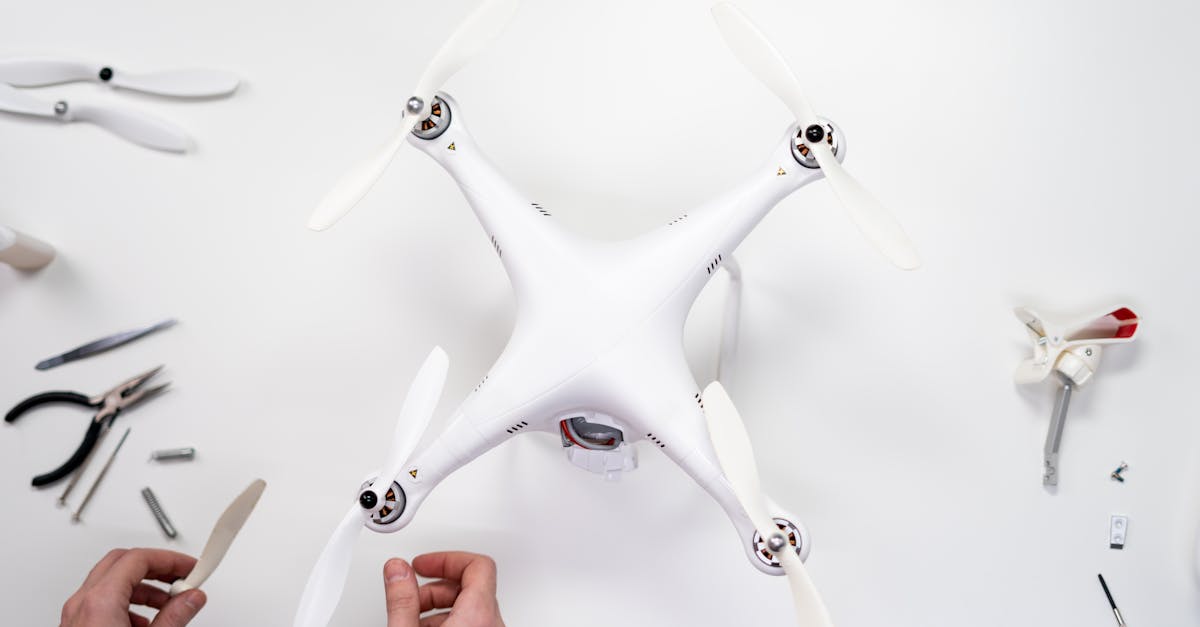

Assembling the Frame and Mounting Motors
Unboxing and Frame Identification
Clear a large workspace. Unbox your F450 kit and lay out all components. You should have four arms, a center plate set, mounting hardware, and your motors.
Look closely at the arms. Two will be one color (often white) and two another (often black or red). The different colors indicate front versus rear arms. This matters for proper orientation when flying.
Assembling the Frame
Stack the center plates with standoffs between them. The bottom plate typically has holes for battery straps, while the top plate mounts the flight controller. Thread the arms through the designated slots in the center plates.
Tighten the arm mounting screws firmly but do not overtighten. The frame needs some flex to absorb vibration and impact. A stripped screw here means a wobbly arm later.
Mounting the Motors
Grab your motors and identify which are clockwise (CW) and which are counterclockwise (CCW). They are usually labeled on the casing or bell. Position them on the frame following this pattern:
- Front-left: CW
- Front-right: CCW
- Rear-left: CCW
- Rear-right: CW
Diagonal pairs spin the same direction. This is critical for stable flight.
Mount each motor using the provided screws and nuts. Use your wrench to hold the nut while tightening from above. Motor wires should face toward the center of the frame for clean routing.
Routing Wires and Mounting ESCs
Route motor wires through the frame channels toward the center. Keep them tidy and avoid pinching between plates.
Secure each ESC to its corresponding arm using two zip ties. Position the ESC so there is a small gap between it and the arm surface. This gap allows air to flow underneath for cooling. An overheating ESC will fail mid-flight, so do not skip this detail.
Quick Check
Q: How do you identify front versus rear arms on an F450 kit? A: Front and rear arms are different colors. Check your kit manual to confirm which color goes where.
Q: What pattern should you follow for CW and CCW motor positions? A: Diagonal pairs must spin the same direction. Front-left and rear-right are CW, front-right and rear-left are CCW.
Q: Why should motor wires face toward the frame center? A: Center-facing wires keep the build clean and make it easier to route them to the PDB and flight controller.
What’s Next?
Your frame is assembled and motors are mounted. Next up, the most technical part of the build: wiring everything together.
